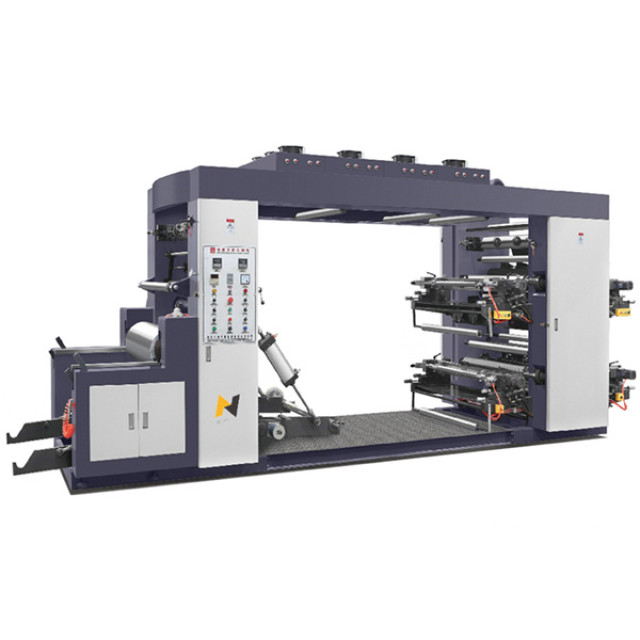

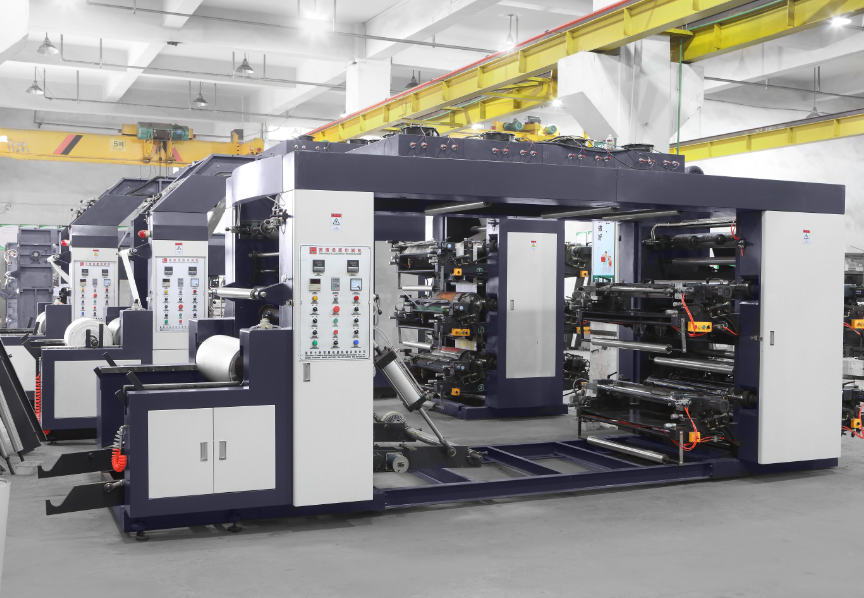

High-Speed Flexo Printing Machine

High-Speed Flexo Printing Machine

Stacked
Product Application:
Features:This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag and plastic film etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Printing Sample Picture for film:

Use:

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag and plastic film etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:

1. Reasonable structure, advanced technology, easy operation, stable performance, accurate color register.

2. Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.

3. When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.

4. The machine is equipped with blower and heater; and the heater employed central temperature control system.

5. The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.

6. Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.

7. Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.

8. Accurate printing effect achieved by special gear transmission device.

9. The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

Main parameter:

Technical Specification

Model

YTB-41000

Max. material feeding width

1000mm

Max. Printing Width

960mm

Colors

4 colors

Material

Paper 40--200gsm

Thickness of plate

Plate thickness:0.067”=1.7mm

 Adhesive tape thickness:0.02”=0.5mm

Customized by client.

Printing length

Plate cylinder 300--1000mm

Printing speed

60-80m/min(in an ideal condition)

Register precision

±0.5mm

Size

7.1m*2.1m*3.3m

Weight

4000kgs

Container

20’ GP

Feeding material part:

1. Single unwind system,hydraulic loader for unwind system

2. Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.

3. Air shaft

4. EPC (edge position control): With manually/automatically/ central return function, can adjust the unwind move left and right .

5. Automatic tension control system with magnetic brake(10KG).

6. Roller core diameter: 76mm

7. Discharge maximum diameter: 1000mm

Printing sections:

1. Plate roller circumference: 300-1000mm.

2. Print material: resin plate or rubber plate

3. Transmission between printing roller and anilox roller: Helical gears

4. Adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)

5. Printing roller lifting system: Automatic Hydraulic cylinder control roll up and down.

Drying system:

1. The machine is equipped with blower and heater; and the heater employed central temperature control system

2. Dry apparatus between each color, and one more dry apparatus after printing finished.

Rewinding Part:

1. Single rewinding system, hydraulic loader for rewind system

2. Big roller friction rewinding system

3. Air shaft

4. Roller core diameter: 76mm

5. Discharge maximum diameter: 1000mm.

6. Big roller friction rewinding system.

Guarantee:

Within one year guarantee from installation date. If the machine need repair during this period, the seller shall dispatch technician to buyer's side. The buyer pays all the expenses including the round air ticket, food and accommodation during the repairing period, and pays 80$/day for engineer. During this period, the seller will bear the cost for defective parts arisen by quality and mail the parts. but the freight for the defective parts should be paid by the buyer’s side. Additionally, if the defective parts are arisen by improper use of buyer’s side, the seller will not supply them for free.

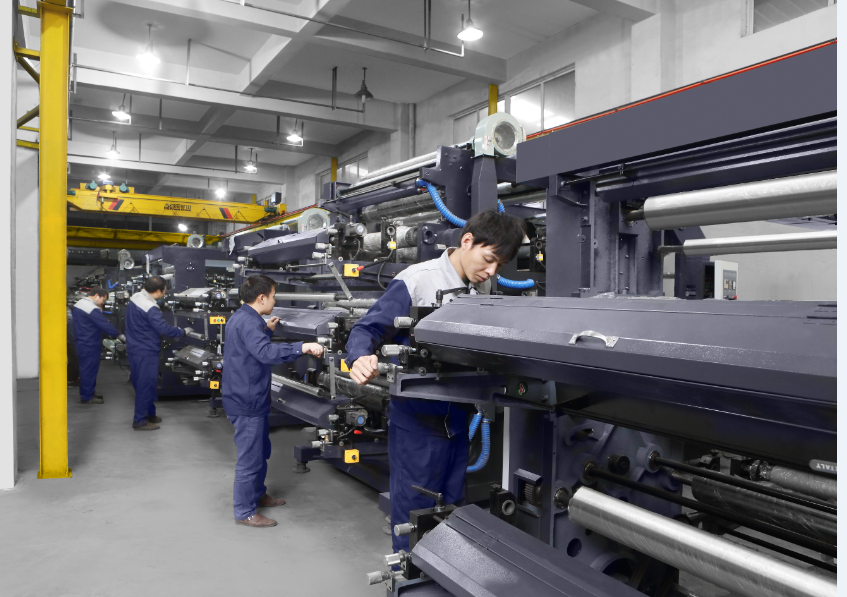

Our company pictures let you know about my company:
