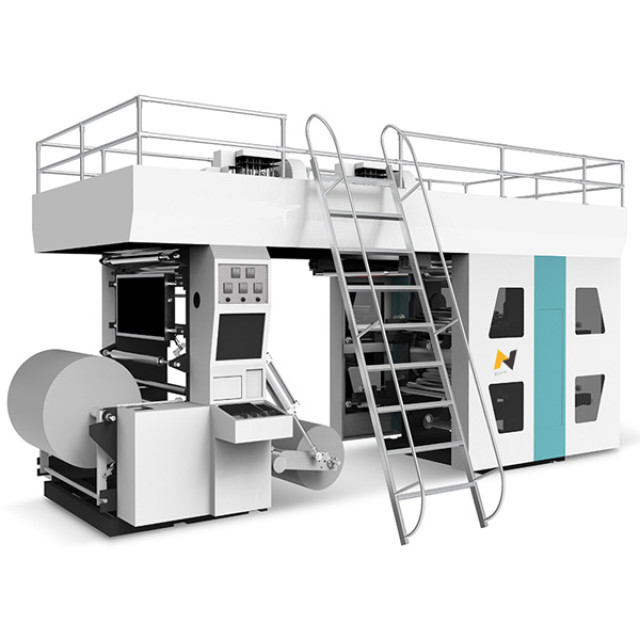

4 Colors 1000mm CI Type Flexo Printing Machine

4 Colors 1000mm CI Type Flexo Printing Machine

Satellite
Product Application:
Features:This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc.

Printing Sample picture:

Use:

This central impression (central drum)flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc.

And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Characteristics:

1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.

2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.

3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.

4.When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.

5.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.

6.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.

7.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.

8.Accurate printing effect achieved by special gear transmission device.

9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

Main parameter:

Technical Specification

Model

YTC-41000

Material feeding width

1000mm

Max Printing Width

960mm

Colors

46 colors

Material

Paper: 40gsm--200gsm

Thickness of plate

1.7mm Customized is available

Printing length

300mm-1000mm

Maximum mechanical speed

150m/min

Max. Printing speed

60--120m/min(different situation speed different)

Register precision

±0.15mm

Structure type

Central impression(central drum)Gear drive(china)

Power of machine

45kw

Machine dimension

6400*2200*3300mm

Feeding material part:

1. Single unwinding system,hydraulic loader for unwind system

2. Automatic stop machine when break the material. When machine stop, keep tension and avoid the material loose or line deflection.

3. Air shaft

4. EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right .

5. Automatic tension control system with magnetic brake(10KG).

6. Roller core diameter: 6 inches

7. Discharge maximum diameter: 1000mm

Printing sections:

1. Print material: resin plate or rubber plate

2. Transmission between printing roller and anilox roller: Helical gears

3. Adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)

4. Printing roller lifting system: Automatic pneumatic cylinder control roll in and out.

Drying system:

1. The machine is equipped with blower and heater; and the heater employed central temperature control system

2. Dry apparatus between each color, and one more dry apparatus after printing finished

Rewinding Part:

1. Double rewinding system, hydraulic loader for unwind system

2. Automatic tension control system with magnetic brake(10KG).

3. Air shaft.

4. Roller core diameter: 3 inches

5. Discharge maximum diameter: 1000mm

6. Big roller rewinding for paper printing.

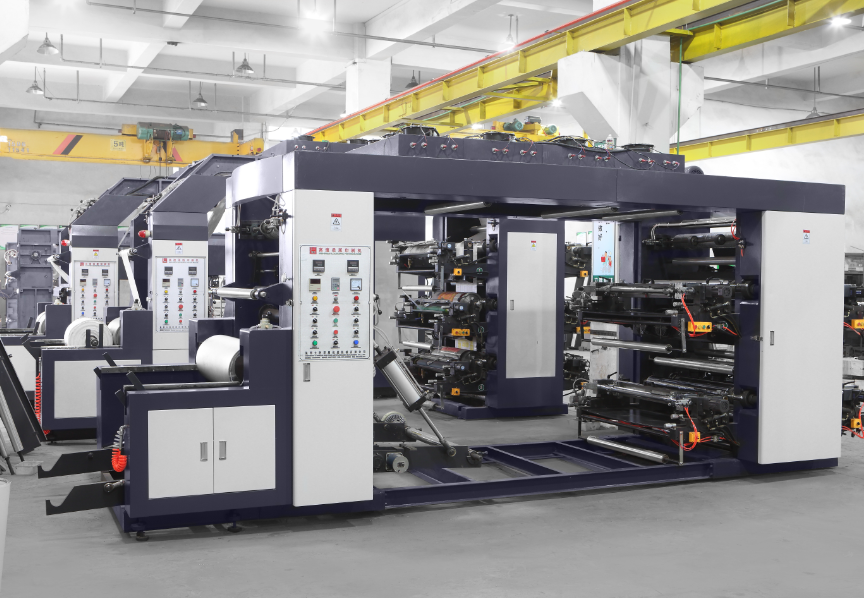

Here is some detail picture below.Hope can make you know more about our machine.

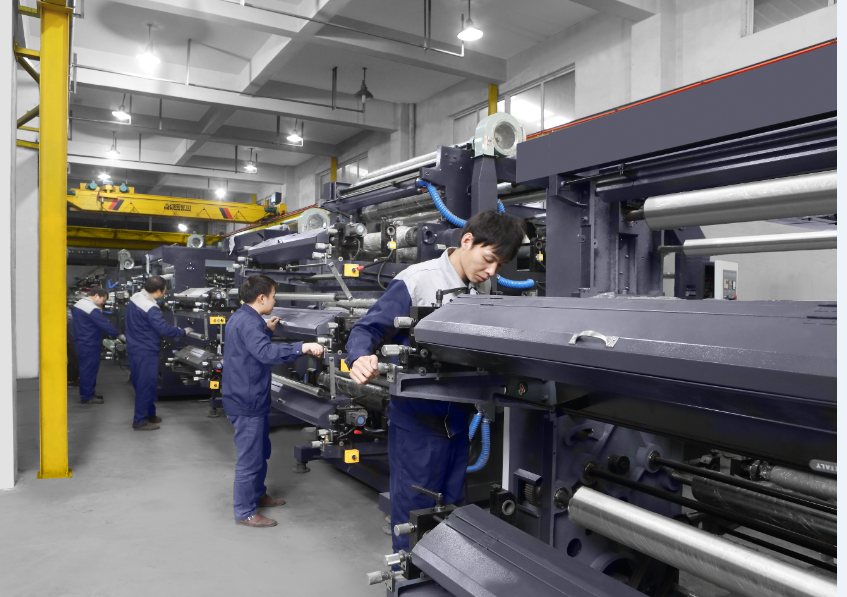

Our company pictures let you know more about my company:

Installation and testing the machines:

If the buyer need engineer from the seller's side, the seller should dispatch an engineer to buyer's side.

The buyer pays all the expenses including the round air ticket, food and accommodation, and also pays 100$/day for engineer during the install and testing machine period.

Guarantee:

Within one year guarantee from installation date.

If the machine need repair during this period, the seller shall dispatch technician to buyer's side.

The buyer pays all the expenses including the round air ticket, food and accommodation during the repairing period, and pays 100$/day for engineer.

During this period, the seller will bear the cost for defective parts arisen by quality and mail the parts.

but the freight for the defective parts should be paid by the buyer’s side.

Additionally, if the defective parts are arisen by improper use of buyer’s side, the seller will not supply them for free.
