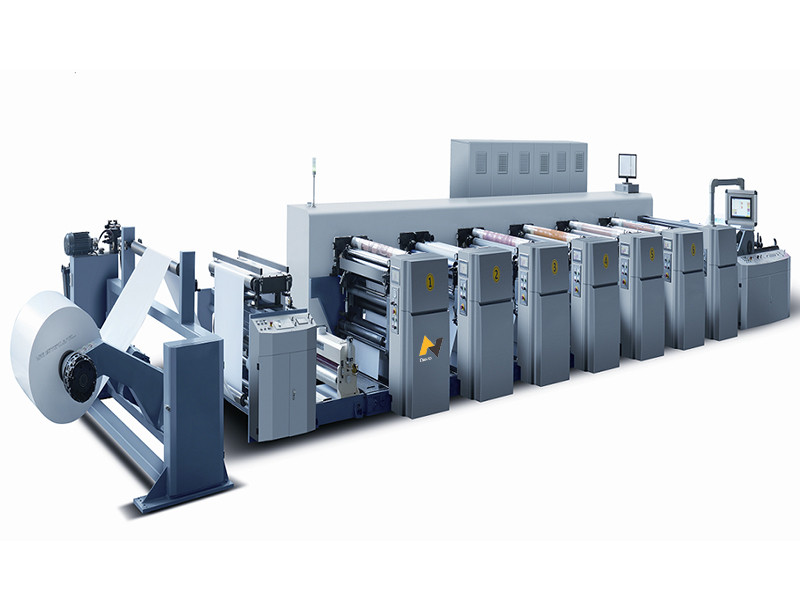

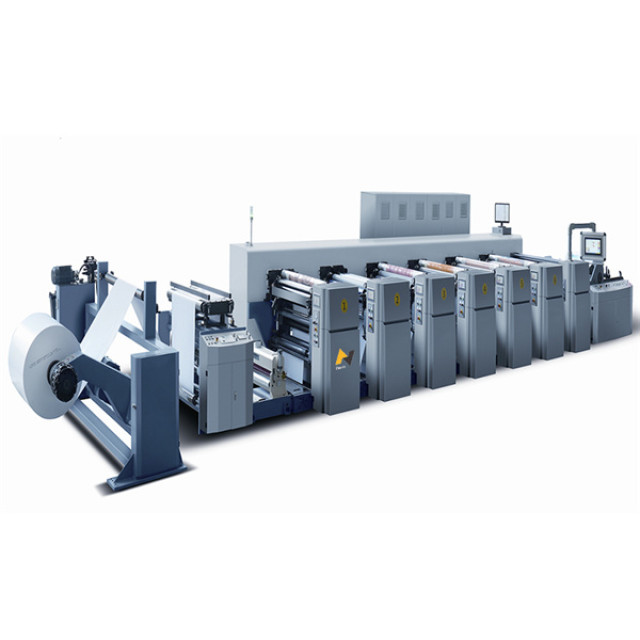

Suitable for eco-friendly packaging, such as the pre-priting carton of paper bag, paper box, paper cup used for food, medicine use
Suitable for eco-friendly packaging, such as the pre-priting carton of paper bag, paper box, paper cup used for food, medicine use
Paper used: kraft paper, carton board meterials, coated paper, liner paper, laminated paper, nonwoven fabric
|
Model |
NW-B 1220 |
|
Specification |
1220 |
|
Max.Web Width |
1220mm |
|
Max.Printing Width |
1200mm |
|
Printing Repeat |
286--1200mm |
|
Die-cutting Repeat |
286--1200mm |
|
Max.Unwinder Diameter |
1524mm/1200mm |
|
Max.Rewinder Diameter |
1524mm/1200mm |
|
Gearing |
1/8cp |
|
Max Printing Speed |
150m/min |
|
Diameter of web roller |
100mm |
|
Base motor power |
15kw-22kw |
|
Drying mode |
Warm Drying/IR Drying/ UV Drying |
|
Oil used |
Aqueous ink/ UV Ink |
|
Power Requirement |
380V 3PH 50Hz |
|
Substrate |
30g copy paper, cotton paper, 40-450g chrome paper, aluminum-foil paper, paper board, kraft paper |
1. Capable of inline cleaning dust, printing and cutting
2. Use water based ink and UV ink
3. Ceramic anilox roller can be used for a long time, and can supply ink appropriately
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable,and register much more acurate.
6. Automaticlly eletronic web-guide system
7. Onlune printing register detection
8. Register system can be operated automatically or manually
Unit type
Product Application:
Features：Suitable for eco-friendly packaging, such as the pre-priting carton of paper bag, paper box, paper cup used for food, medicine use
Unit type
Product Application:
Features：Application Object
Suitable for eco-friendly packaging, such as the pre-printing carton, paper bag, paer box, paper cup used for food, milk and medicine package.
Satellite
Product Application:
Features：This central impression （central drum）flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc.
