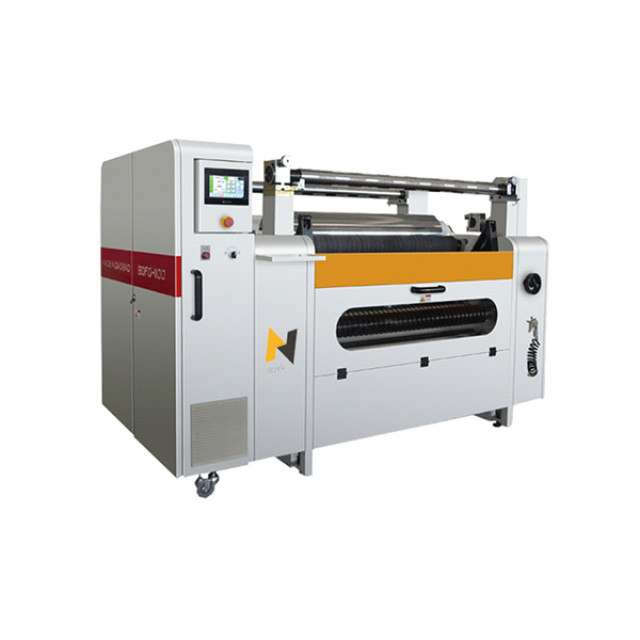

Slitter Rewinding Machine suitable for Printing&Packaging Industry, converting jumbo roll to narrow roll(The minimum width 10mm).Jumbo roll material 45-180gsm, such as cardboard paper ,kraft paper,coated paper, silicon paper,plastic r etc slitting & rewinding.
● 1.PLC controlling system make the machine having an intelligent operation. Machine using three sets servo motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.
● 2.Machine use frequency converter adjust speed, keep stable running when speed go up.
● 3.Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.
● 4.Rewinding shaft use two pcs air shaft structure.
● 5.Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan
● 6.Ultrasonic automatic correction system
● 7.Automatic cylinder shaft mother roll loading.
|
Technical parameter |
|
|
Max width mother roll |
1300mm |
|
Min width finished roll |
10mm |
|
Max diameter mother roll |
1400mm |
|
Max diameter finished roll |
600mm |
|
Max mother roll weight |
1200KG |
|
Speed of slitting |
0-300/min |
|
Slitting capability |
45-180gsm |
|
Rewinding way |
Central&surface |
|
Precision |
±0.2mm |
|
Speed regulation control |
Inverter |
|
Power input |
380V,50HZ,3PH |
|
Dimension |
4500*2700*1500 |
|
Total weight |
3500KG |
