Automatic Twisted Paper Rope Handle Making Combis Pasting Machine

Semi-automatic paper bag machine
Product Application:

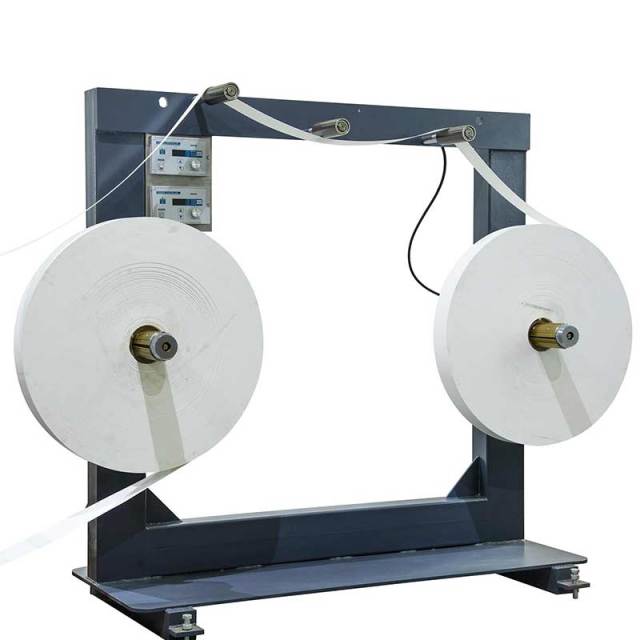

Features:This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Main features:

This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handlein line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

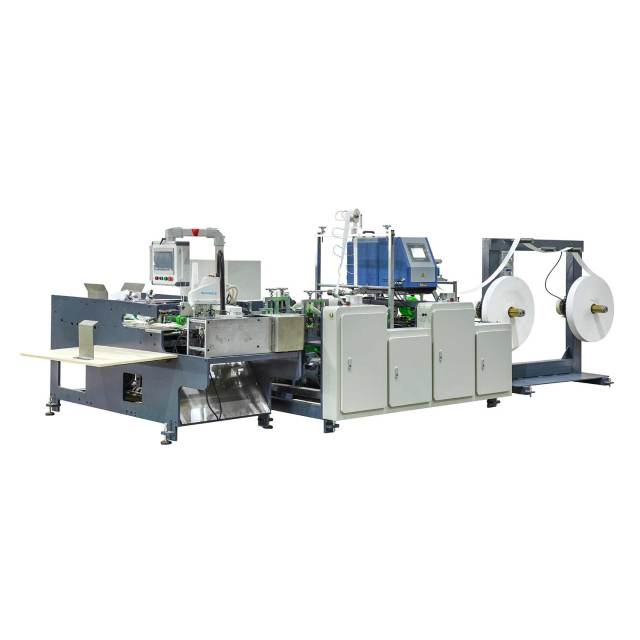

Products Picture:

Specification:

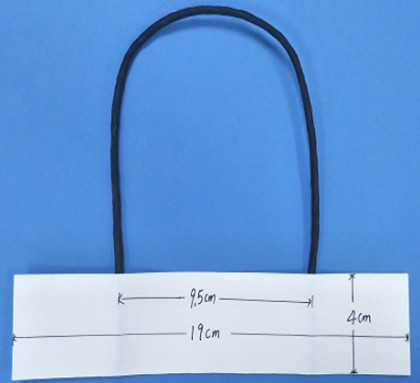

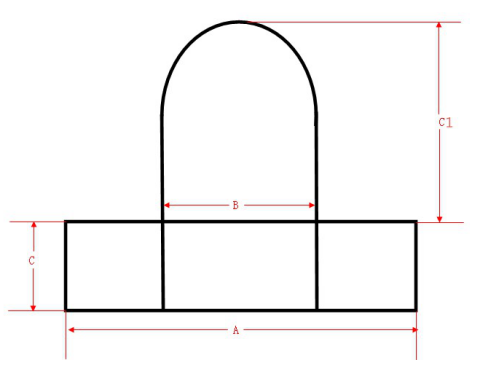

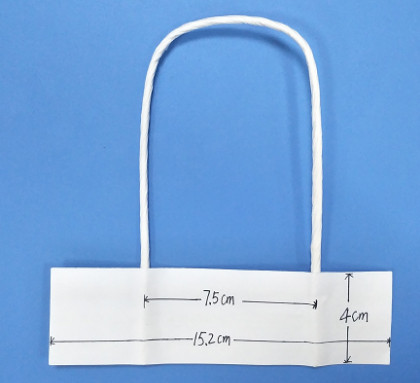

Handlelength(A)

152/190mm



Rope spacing(B)

75/95mm

Paper width(C)

30/40mm

Paper rope length

360mm

Paper rope height(C1)

100mm

Rope diameter

Φ2.5~5mm

Bag width

250-400mm

Bag height

250-450mm

Top opening size

Over 130mm

Production speed

30-35pcs/min

Servo motor power

750W

Totalpower

380V,10KW,50HZ

Overalldimension

L6000*W1600*H1500mm

Components

Motor brand

Longbang geared motor(China)

Servo motor brand

Siemens(Germany)

PLC programming brand

Siemens(Germany)

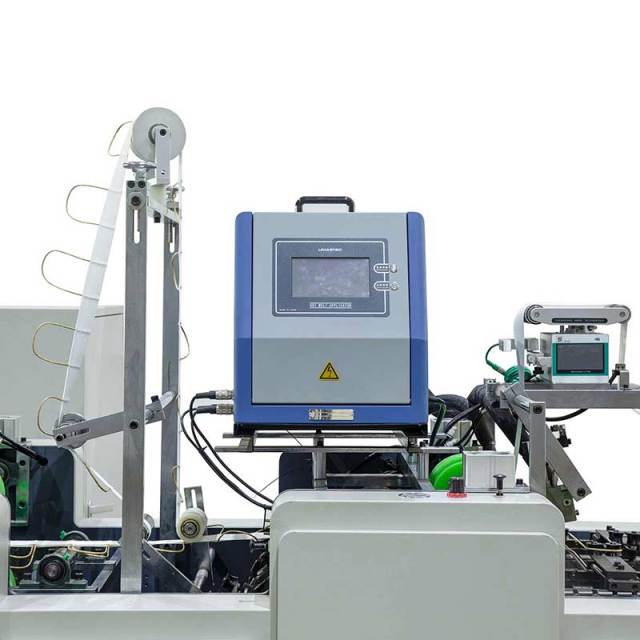

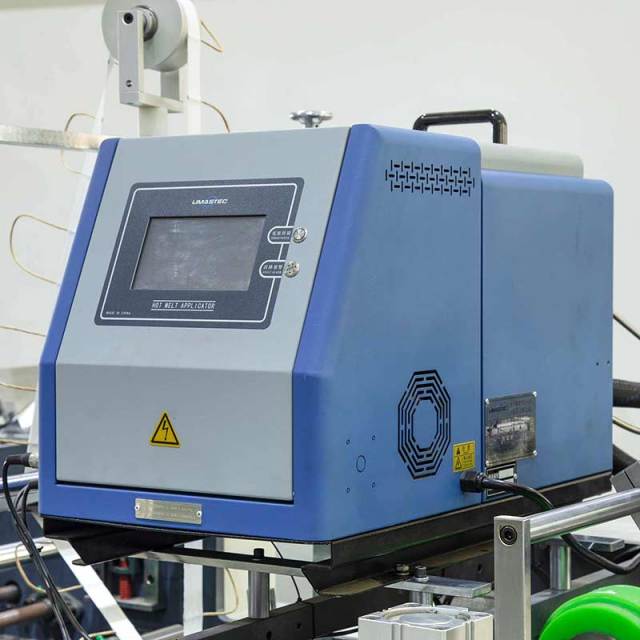

Hot melt machine brand

Huangshang(Taiwan)

Mechanical arm

Delta(Taiwan

Accessory List

Part Name

Qty

Unit

Slidder

2

SET

Mould

2

PC

Chain

1

SET

Glue Wheeler

2

PC

Carbide Round Knife

1

PC

Steel Square Knife

2

PC

Cutter Wheel

2

PC

Tool Box

1

SET

Machine Packaging Dimensions

Name

OverallDimension(With the cases)

Gross Weight

Main Machine

2950*1450*1750mm

2000kg

Material Holding Frame

1650*850*1750mm

500kg

Pasting unit

2250*1250*1650mm

800kg

Control box

1050*650*1350mm

100kg
